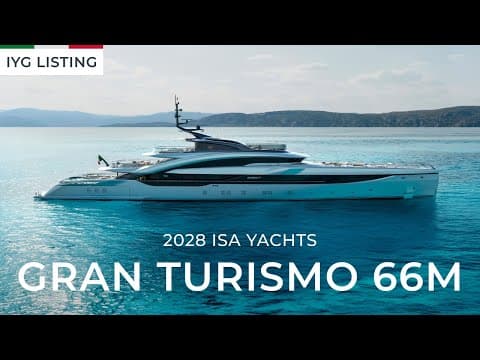

GranTurismo 66M

Design & Construction

• ISA Gran Turismo 66 Motor Yacht

• Naval Architecture by ISA Yachts

• Exterior & Interior Design by Enrico Gobbi – Team for Design

• Steel round-bilge hull with aluminum alloy superstructure

• Contemporary Italian styling with long-range cruising capability

Classification

• Lloyd’s Register of Shipping

• Class: 100 A1 SSC Yacht Mono G6

• Notations: L.M.C., UMS, EP

Principal Dimensions

• Length Overall (LOA): 66.40 m / 217’8”

• Length at Waterline (LWL): 65.45 m / 214’7”

• Beam: 11.00 m / 36’0”

• Draft (full load): 3.30 m / 10’8”

• Gross Tonnage: Approx. 1,200 GT

• Displacement (full load): 1,014 t

Side Decks

• Wide wing-shaped decks with generous circulation space
• Glass balustrades provide 180° panoramic views
• Clear access to aft deck and sky lounge
• Deck layout designed for both operations and entertaining

Sky Lounge / Upper Deck

• Integrated into profile with two lateral fins and rounded volume
• Flexible layout: can function as panoramic lounge, gym, or dining area
• Bow Jacuzzi included
• Designed for socializing, relaxation, and navigation support

Aft Main Deck

• Infinity pool dominating the aft
• Expansive lounge with sun loungers
• Designed for outdoor entertaining and leisure
• Easy flow from side decks and aft boarding points

Interior / Main Deck

• Organic furnishings
• Materials: warm woods, wenge inserts, marble, satin-finish brass
• Full-beam master suite forward: lounge, walk-in closet, double-sink bathroom
• Two main deck guest cabins with double beds and en-suite bathrooms
• Spacious, light-filled interiors via large windows

Lower Deck

• Four additional guest cabins: two doubles, one twin, one convertible
• Crew and service areas discreetly positioned
• Layout maintains comfort, privacy, and operational efficiency

Propulsion & Performance

• Main Engines: 2 x MTU 12V4000M65L

• Power: 2 x 1,771 kW @ 1,800 RPM

• Gearboxes: ZF (ratio TBD)

• Maximum Speed: 18.5 knots

• Cruising Speed: 16.0 knots

• Range:

  • 4,500 NM @ 14.5 knots

  • 5,500 NM @ 12.0 knots

Maneuvering & Stability

• Fixed-pitch bow thruster, approx. 150 kW

• One pair of non-retractable stabilizer fins

• Zero-speed stabilization for enhanced comfort at anchor

Tankage

• Fuel Oil: 130,000 L / 34,342 gal

• Fresh Water: 25,000 L / 6,604 gal

• Grey Water: 30,000 L / 7,925 gal

• Black Water: 30,000 L / 7,925 gal

Accommodations

• Guests: 12 in 6 staterooms

• Crew: 14 in 8 cabins

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
