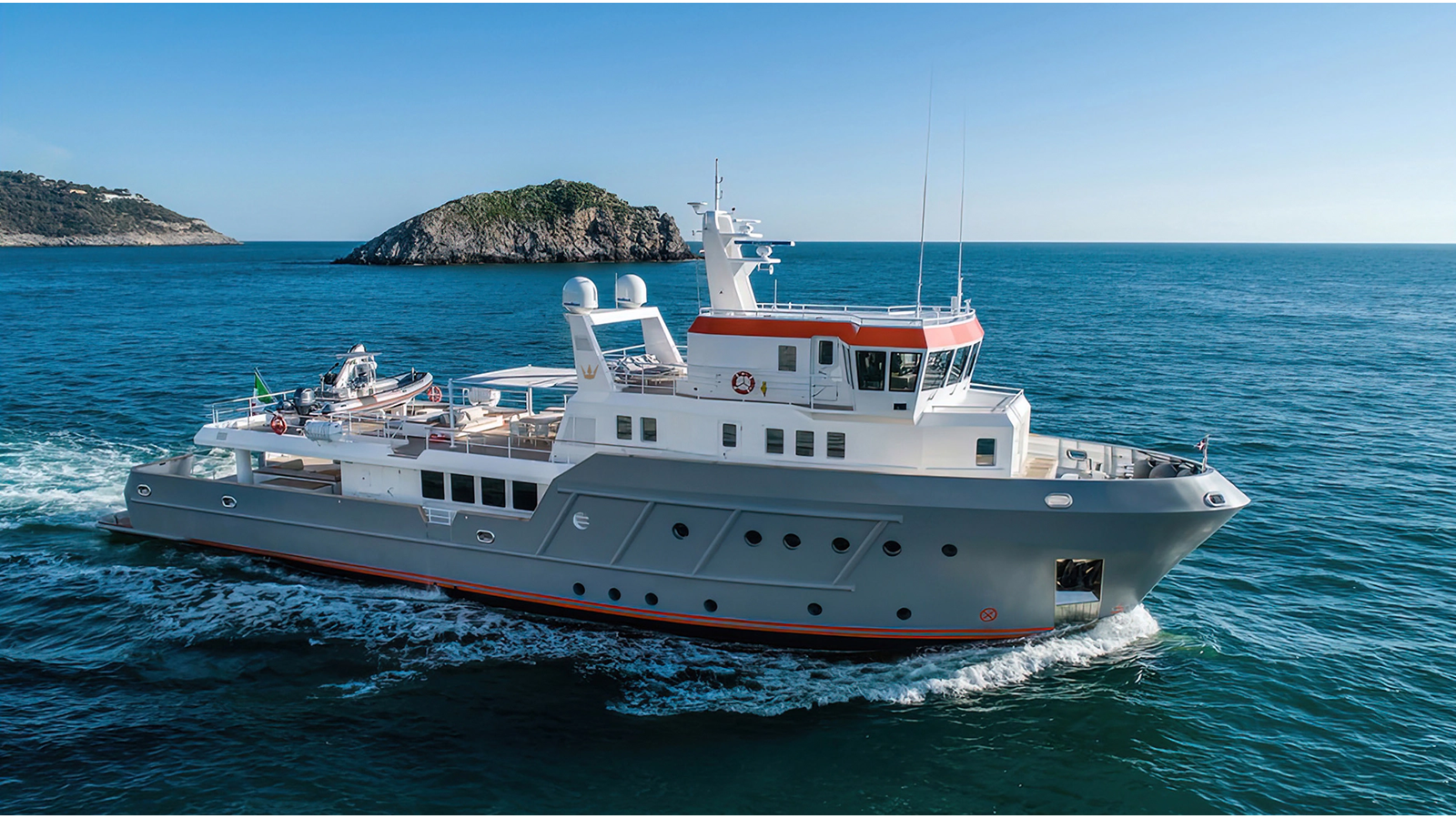

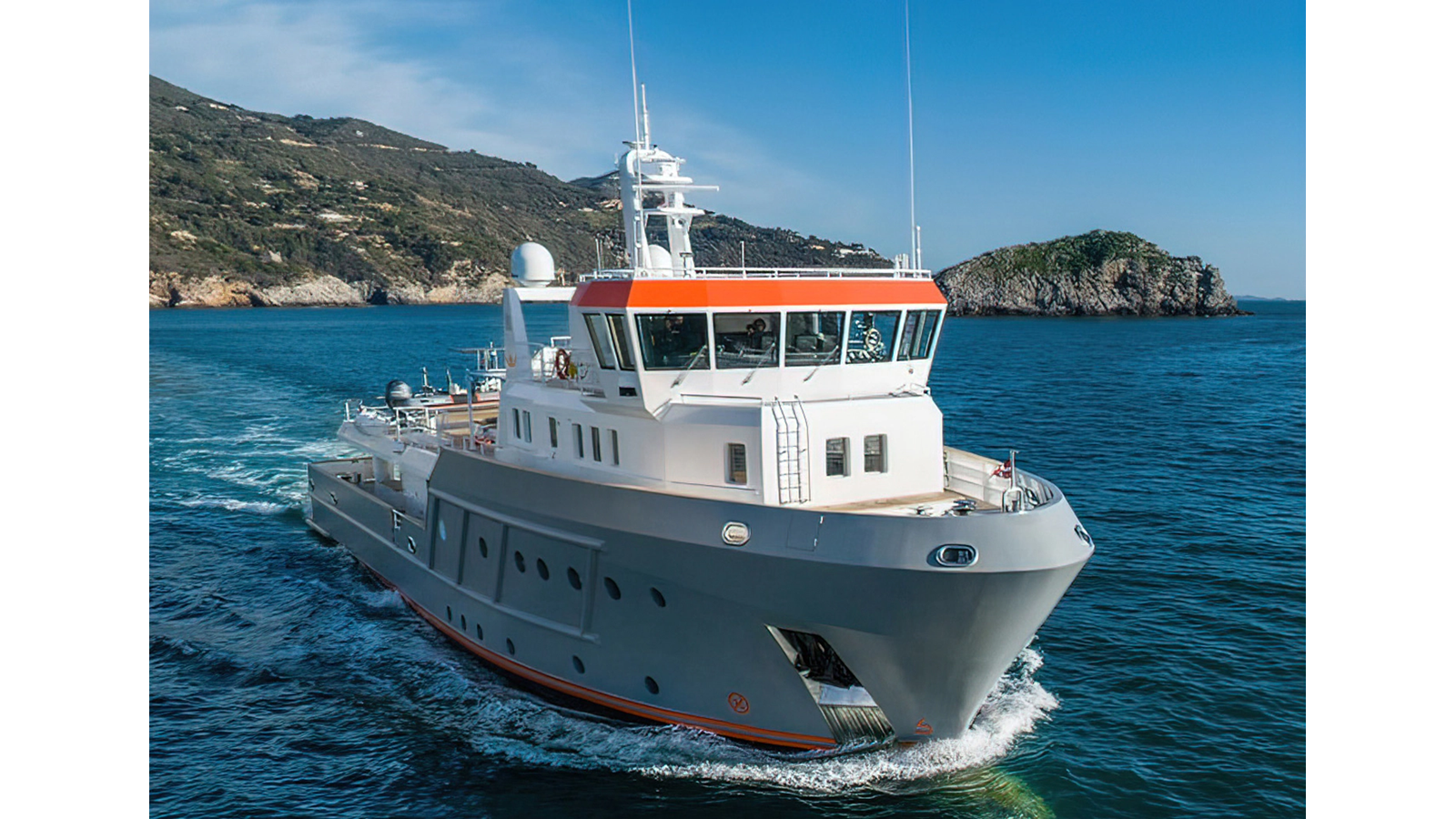

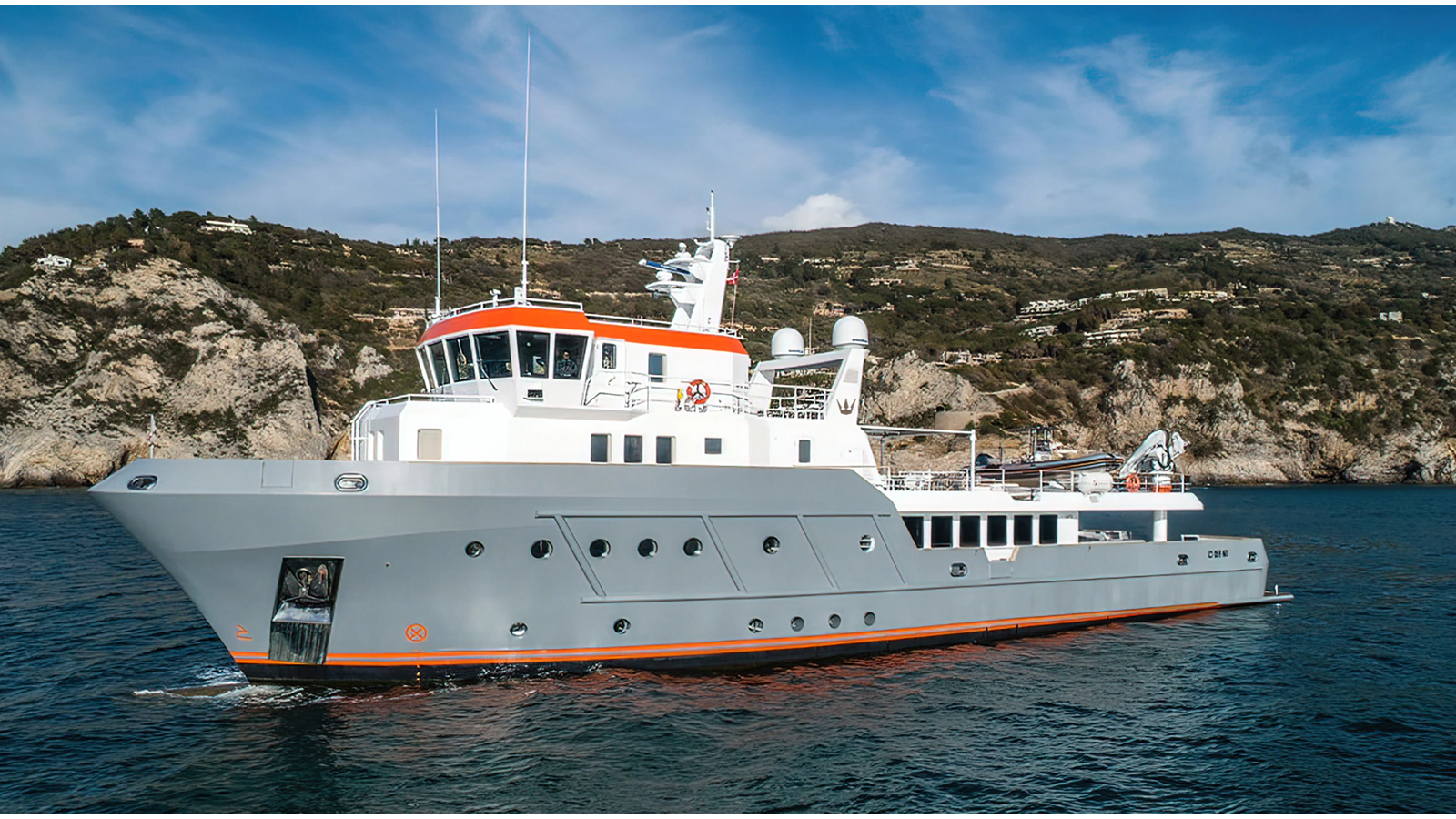

EXPLORER 130

Technical Details

• Builder: Ocean King
• Model: Explorer 130
• Hull Type: Full displacement with bow bulb
• Hull Material: Steel
• Superstructure Material: Aluminum
• LOA: 40.26 m/132 ft
• LWL: 36.33 m/119.1 ft
• Max Beam: 10.20 m/33.4 ft
• Draught at Half Load: 3.30 m/10.8 ft
• Displacement at Half Load: 650 t
• Displacement at Full Load: 728 t

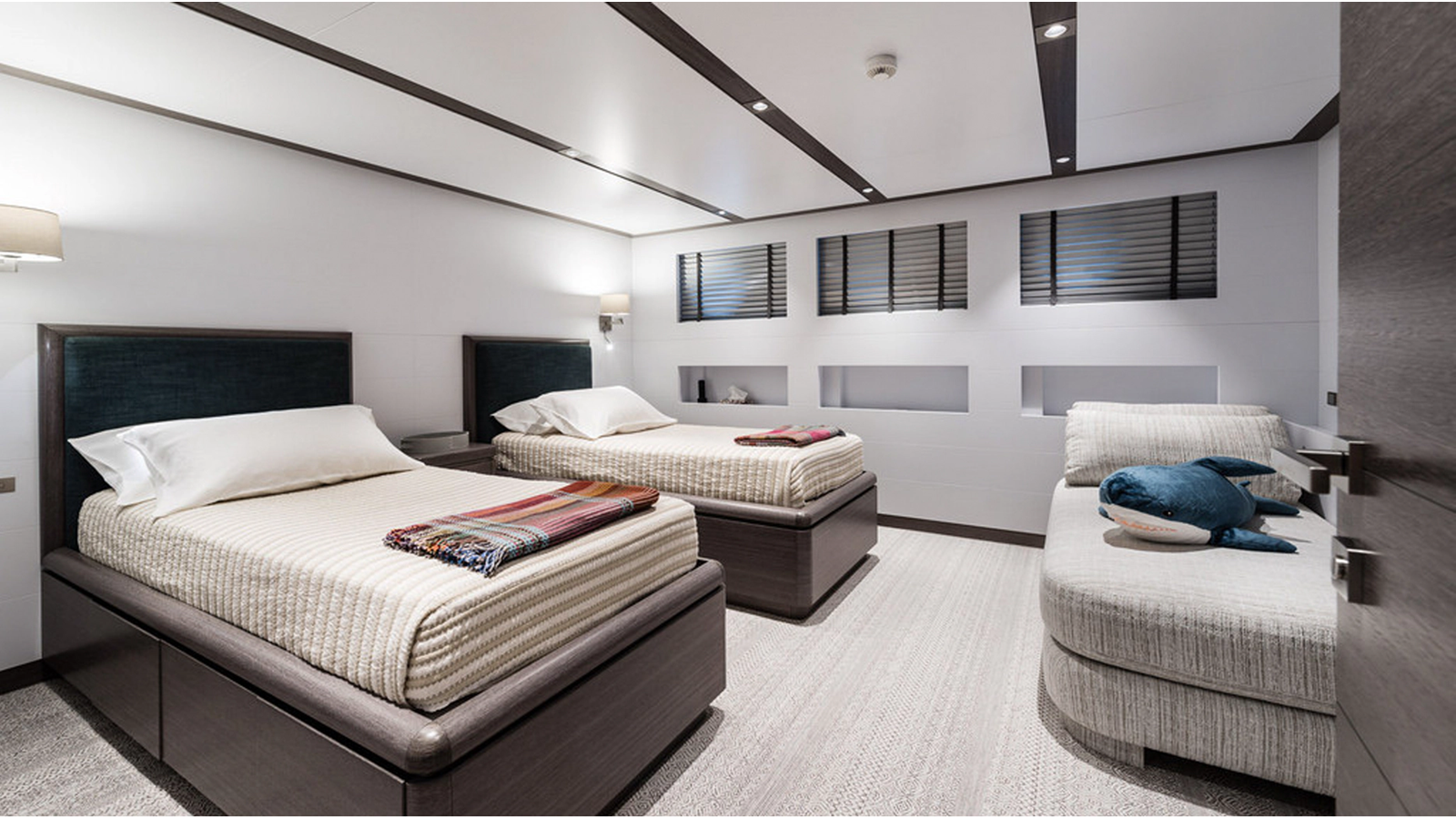

• Guest Accommodation: 12 guests in 6 staterooms
• Crew Accommodation: 9 crew in 5 cabins
• Gross Tonnage: less than 500 gt
• Engines: (2) CAT C32 Acer V12 RAT.A
• Power Output @ 100/MCR: (2) 970 kW/1320 Cv @2,100 rpm
• Gearbox: Reintjes WAF 484
• Propulsion: Direct shaft line with (2) Flexible coupling Vulkan ProFlex
• Propeller: in NiBrAl class "S" - 5 blades - designed to optimize comfort and efficiency
• Shafts: AISI 630 Ø 120 mm
• Rudders: AISI 316 stainless steel
• Max Speed: 14 knots
• Cruising Speed: 12 knots
• Economical Speed: 10 knots
• Max Range at Economical Speed: 16,800 nm

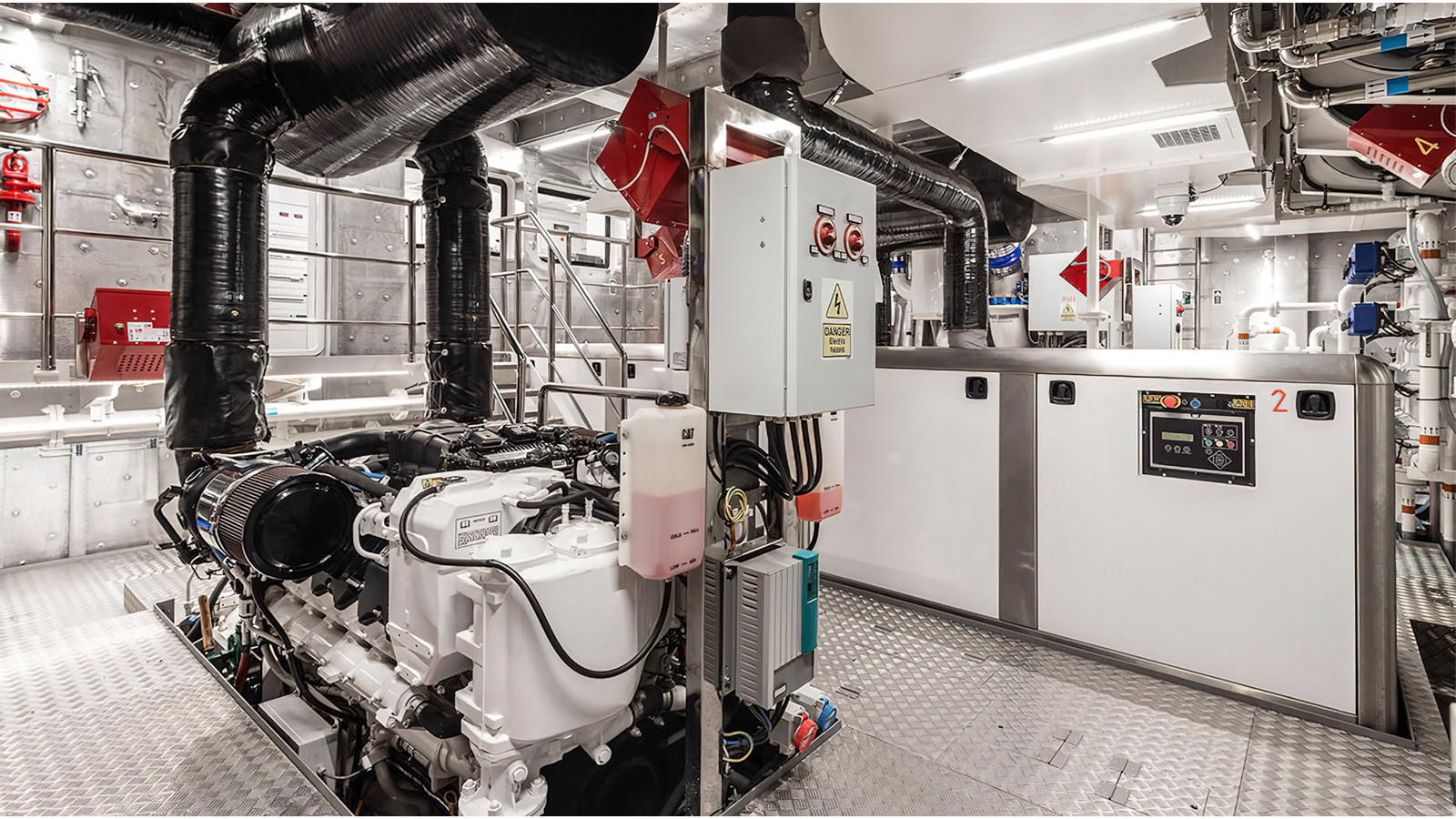

• Gensets: (2) 118 kW @ 50 Hz 400V + (1) 65 kW @ 50 Hz 400V
• A/C Power: 240,000 btu/h
• Fuel Tank Capacity: 194,000 liters/51,254 gallons
• Fresh Water Tank Capacity: 21,000 liters/5,548 gallons
• Black/Grey Tank Capacity: 18,000 liters/4,755 gallons
• Lube Oil Tank Capacity: 2,200 liters/581 gallons
• Dirty Oil Lube Tank Capacity: 2,200 liters/581 gallons
• Bilge Tank Capacity: 2,200 liters/581 gallons
• Overflow Tank Capacity: 1,000 liters/264 gallons

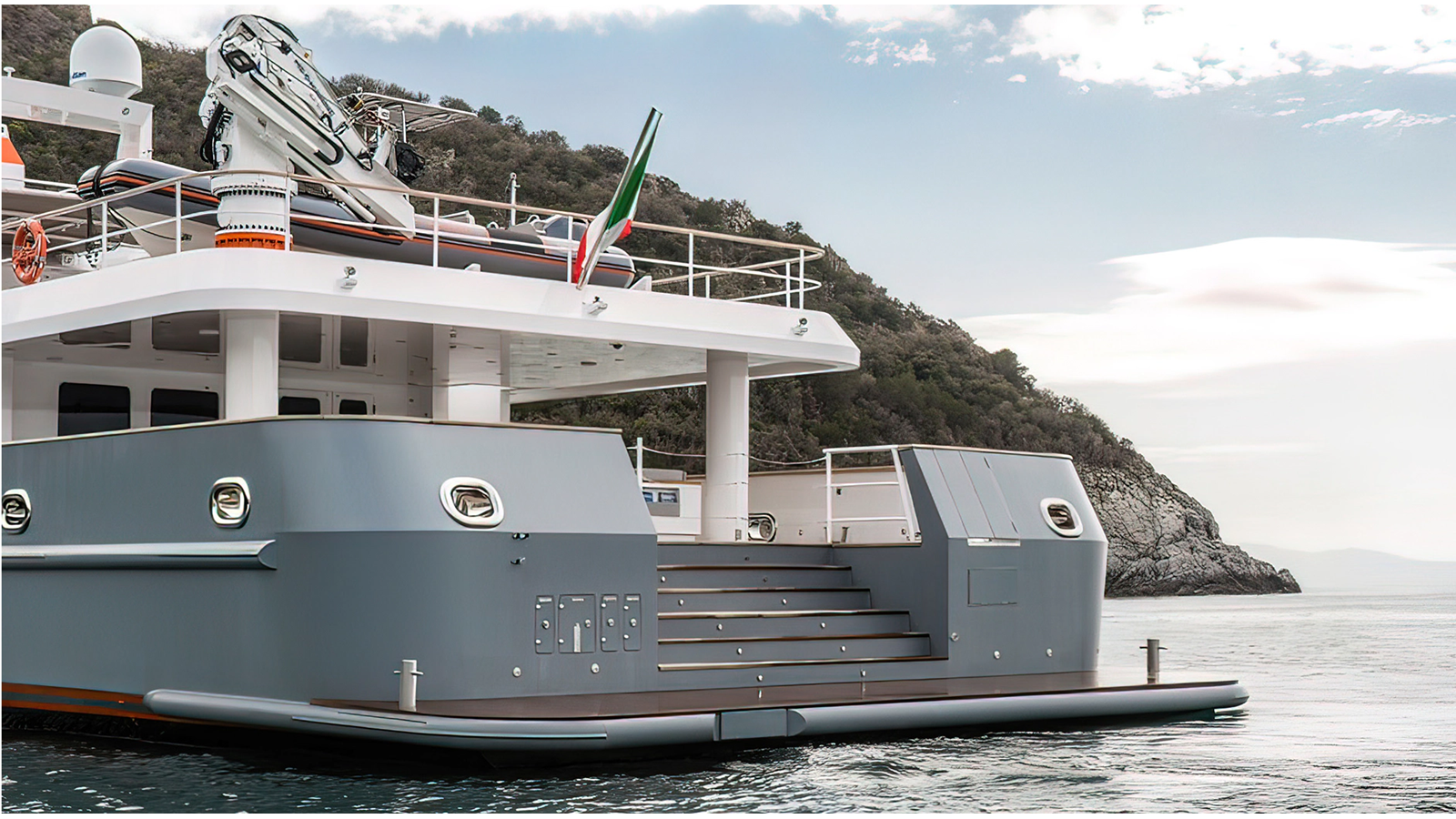

• Tender Length: Max 8.5 m/27.8 ft

About Ocean King

Ocean King is the proud result of over 35 years of experience in crafting commercial steel vessels. Our shipyard is based in Chioggia, within the Venice lagoon, a location steeped in shipbuilding tradition of excellence that spans over nine centuries.

Our journey and evolution have led us to develop a unique approach to luxury yachts. We blend our passion and expertise to create yachts with true Explorer DNA, embodying the perfect synergy of practicality, elegance and seaworthiness.

We honor the sea's unpredictable and wild nature. Our cutting-edge approach to design is born from this reverence. This is why our yachts are meticulously constructed from metal, guaranteeing unmatched sturdiness, dependability, and comfort - qualities that simply cannot be matched by any other material.

An Ocean King offers all this and beyond, ensuring you can enjoy what truly counts: adventure.
