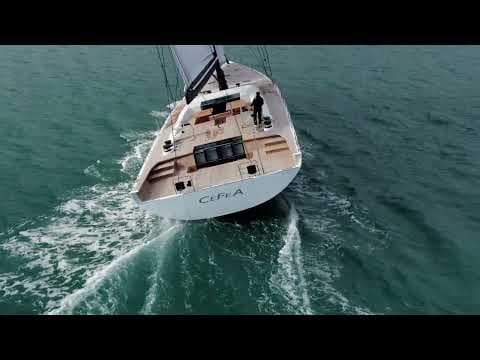

CEFEA

Equipment

• One (1) diesel engine CUMMINS QSB 6.7, direct injection, turbo charged and after-cooled hp = 425 • Speed = 3000 rpm • No. of cylinders = 6 • Total displacement = 6,7 liters • Electrical starting motor = 24 V DC • Fuel consumption at rated power = 82.2 liters/h • Bruntons Propeller Varifold 4 blades

Voltage - General • The system will have the following rated voltage:

• 400 V 50 Hz AC three phase for main power supply
• 230 V 50 Hz AC single phase for main power supply
• 24 V DC for secondary services, lighting, emergency lighting, electronics and alarms

Generator set • One NORTHEN LIGHTS 32 kW, 230/400 V, mono-phase and neutral, 50 Hz, equipped. The generator is equipped with one (1) PTO for hydraulic system • One Emergency Generator , mod. Paguro 18 Kw 10Hr • Shore power supply - One 63 amp, nominal 380 VAC three-phase shore power connector • a) A 24 V, 140 Ah battery system for starting main engine. • b) A 24 V, 140 Ah battery system for starting generator. • c) A 24 V, 1440 Ah battery system for services • d) A 24 V, 540 Ah, battery system for lights • e) A 24 V, 200 Ah, battery system for electronics and RTF station (radio). • A parallel system between groups a) and b), and c) and d) is provided

Rigging and Sails • The mast is a all carbon Southern Spar, and the rigging is ECsix (the mast was repainted in Awlgrip this winter). • The main sails (mainsail, jib, and staysail) are new from 2025 and produced by North Sails. The Code 0 is from Doyle Sailmakers 2024 • All the rigging, as well as much of the main equipment , were overhauled and inspected last winter (2025) during the RINA five-yearly inspection e survey .

Electrical • Three (3) 100 Ah battery chargers for groups c, d, e • One (1) 50 Ah battery chargers for groups a, b • One (1) inverter 2,5 kW max (1,8 kW continuous sinusoidal for electronic system) • One (1) inverter 2,5 kW max (1,8 kW continuous sinusoidal for galley and sockets) • Two (2) magnetic compasses installed in way of the steering pedestal • wind-depth-log-compass-autopilot B&G H5000 system, including:

• one (1) HERCULES processor
• five (5) 30/30 displays
• eight (8) GFD displays (four (4) on deck and four (4) inside)
• one (4) Zeus 16 display with keyboard -one /1) Furuno commercial display -one T&T SatPhone -one Sailor VHF Commercial radio
• one (1) speed sensor
• one (1) depth/temp sensor
• one (1) mast head wind sensor
• one (1) motion sensor
• one (1) compass sensor
• one (1) GPS
• one (1) radar system
• auto-pilot system computer and controller display

• One (1) VHF with DSC and cockpit outlet • One (1) AIS system • Two (2) portable VHF radio GMDSS • One (1) 4G/HSDPA deck antenna • One (1) RX/TX deck wi-fi antenna • On board wi-fi network • One Starlink Antenna • One (1) fog horn
