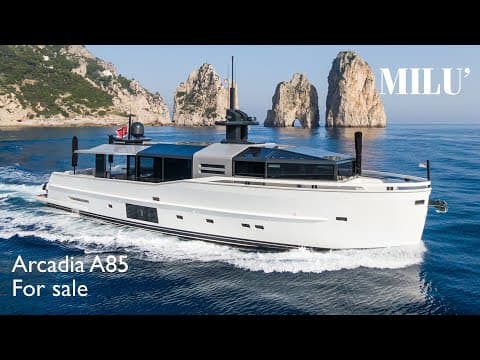

MILU'

Specifications

Length: 25.91 m
Beam: 7.14 m
Draft: 1.66 m
Build Year: 2019 – hull 16
Builder: Arcadia Yachts
Model: A85
Naval Architect: Arcadia yachts

Exterior Designer: Francesco Guida Design
GT: 109
Hull: Fiberglass
Hull Colour: White AWLCRAFT
Hull Configuration: Semi- planning
Superstructure: Fiberglass

Flag: Malta
Classification: RINA  EU Declaration of Conformity Category B

Main Engines: 2 x MAN i6-730hp
Fuel: 9,300 L
Water: 1,600 L
Speed: 12 knots
Cruising: 10 knots
Maximum: 16 knots

Number of Cabins: 4
Guests: 8
Sleeping Configuration: 2 doubles and 2 Twins, 4 singles berths
Crew Cabins/Berths: 2/4

Machinery

Main Engines
Engine Make/Model:  2 x MAN i6-730hp
Engine Hours: 1520
Gearboxes for main Engines: ZF 325 IV
Drive: Shaft Marinox 17

Speed Consumption per hours Range RPM
Maximum: 15,5kn - 280l/h - 500Nm - 2200 RPM
Cruising: 10kn - 64l/h - 950Nm - 1200 RPM

Generators & Electricity
Output: Phoenix Contact
Generators: 2 x Kohler 28 KW 50 Kz
Generator Hours: Stab 4020 Port 3950
Generator Fuel Consumption: 10/15 L/H
Shore Power: 220v – 50Hz 63 A
Solar Panels: 4.7kw

Batteries
Main Engine Starting: 24V – 300 Ah
Generator Starting: 12V – 150 Ah EACH

Air Conditioning
Type: Dometic PCWM 30004 Mediterranean Type Condaria System  120.000 Btu/h

Other Machinery
Water makers: Idromar 180l
Trim Tabs/Stabilizers: CMC Electric – HS60
Bow Thruster: CMC Marine BTM 30 EA - Electric 25KW
Steering System: Hydraulic Steering System – BCS
Fuel Separator & Filtration: Alfa Laval MiB 303S -13/33
Sewage System: Selmar blue Sea Plus 2500
Fresh Water System: Autoclave 1 x 220 w, 1 x 24 w

Communication systems

VHF: Raymarine RAY90/91
Cellular Phone System: Fritz

Navigation Systems

Radars: Raymarine quantum 2
Gyrocompass: Airmar
Auto Pilot: Raymarine p70s – Evolution  EV1 and ACU
Depth Sounder: Raymarine CP100
Night Vision: Thermal Camera Flir – Raymarine T350
GPS: Raymarine RS150

Galley & Laundry Equipment

Main Galley Equipment
Cooking Equipment: 4 burners vetroceramic cook top
Refrigeration/Freezer: Bosch KAN 90V120 380l fridge and 100 L freezer
Dishwasher: Bosch SMV46

Additional Galley Equipment
Cooking Equipment: Microwave Oven Bosch BFL634G.1 , Multifunction Oven, Extractor hood Bosch DHL535C

Other: 2 x Wine Cellar Liebherr UW1682

Laundry Equipment
Main Laundry Equipment: Miele washing and Dryer Machine

Deck Equipment

Anchor Windlass: Lofrans – Project X4 R/O
Aft Warping Capstans: Lofrans – T. 1700
Anchors: 80kg
Anchor Chain: 150m/12mm diameter chain
Boat Crane and Davits: Opacmare
Passerelle: Opacmare 4,0 m/150kg
Swimming Platform: Extra to UP & DOWN 900kg

Safety & security equipment

Life Rafts: Eurovinil Spa. 2x 8 persons each
Life Rings: 16 lifejackets
Flares: Yes
Medical Equipment: Certified first aid kit
