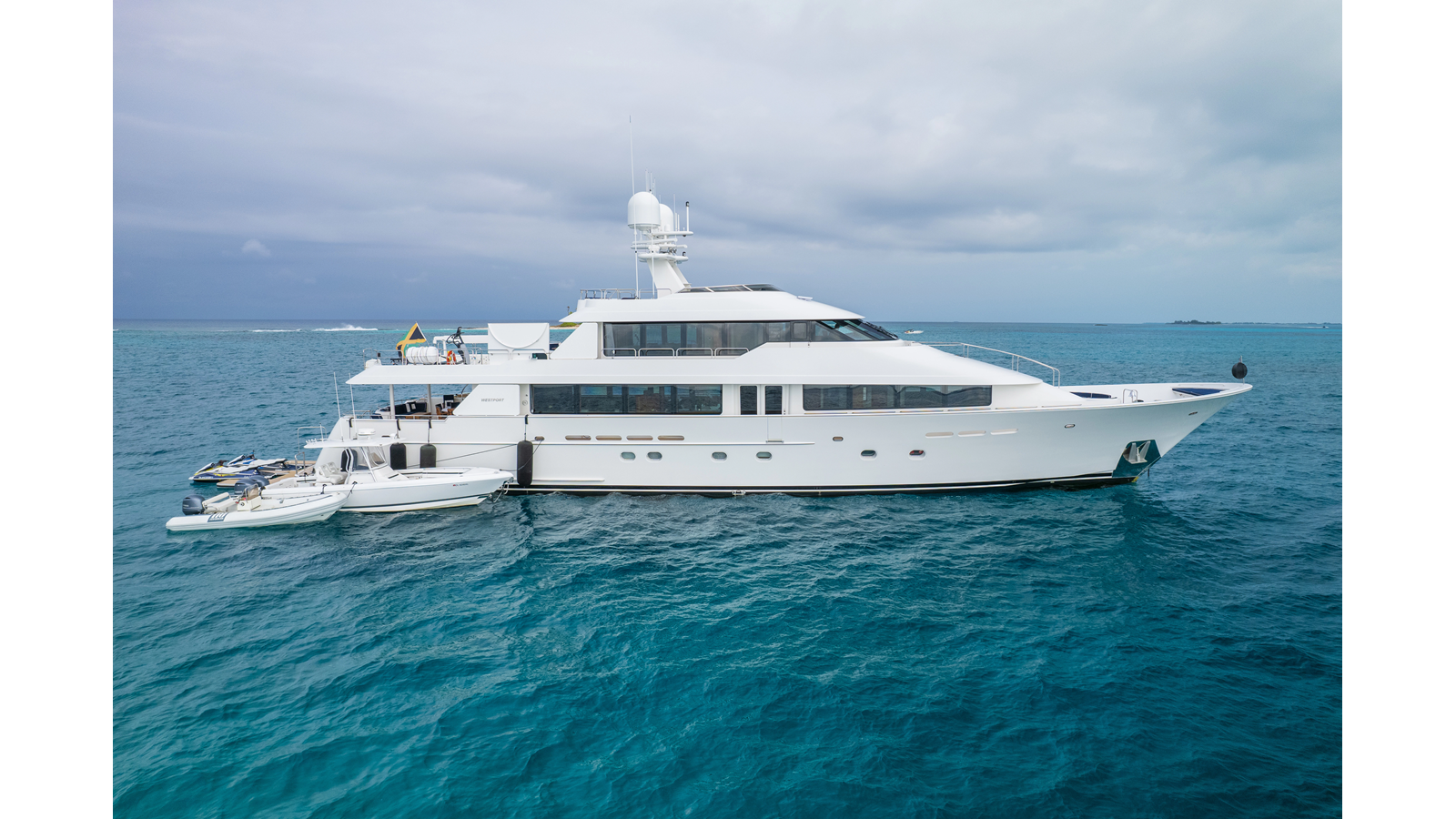

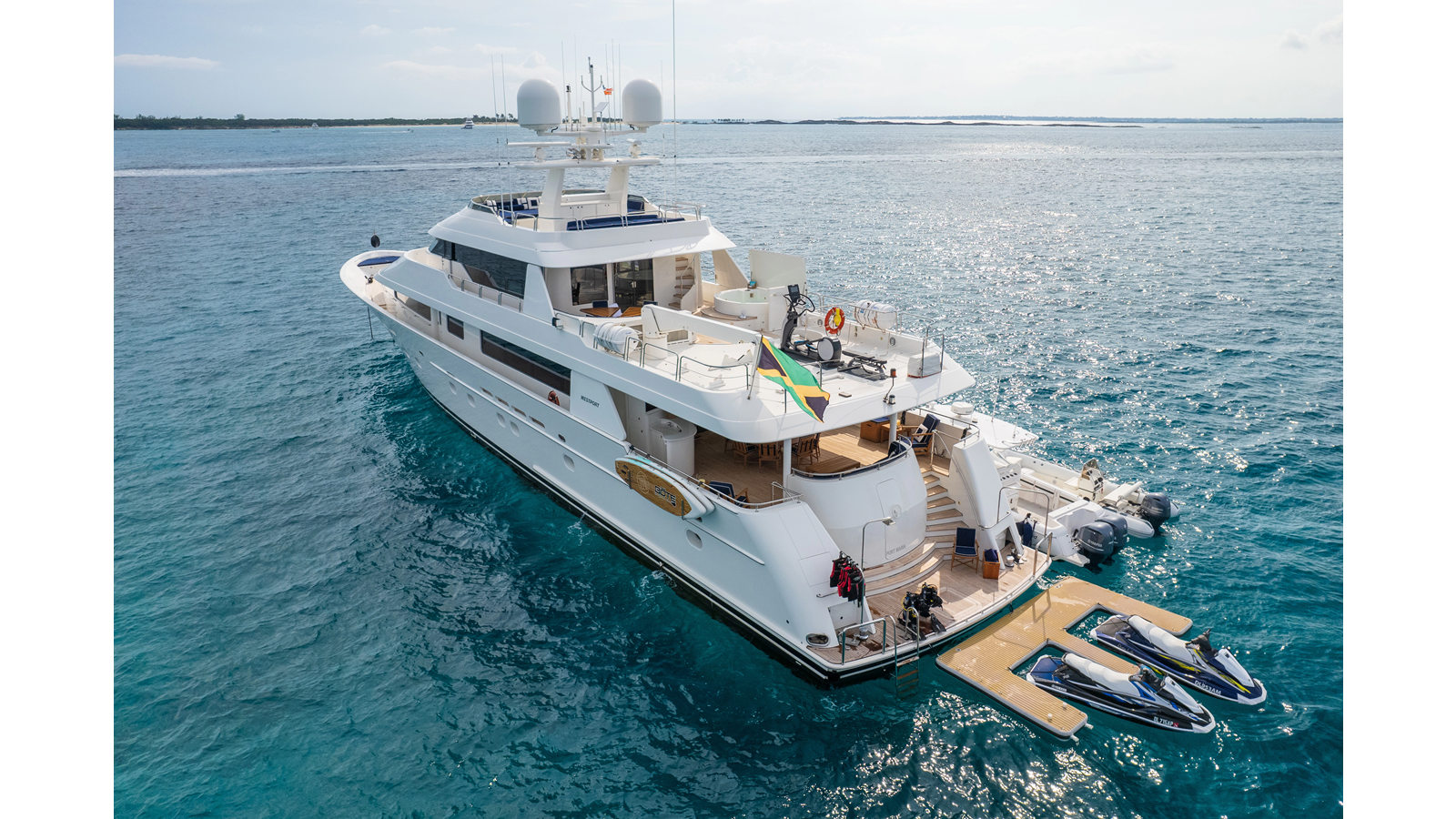

AVALINA

Main Specifications

Length Overall: 130 ft / 39.6 m Beam: 26' 3" ft / 8 m Draft: 6' 6" ft / 1.98 m Year Completed: 2003 Model Year: 2003 Refit: 2020 Type: Motor Yacht Tonnage: 280 GT Displacement: Semi Displacement Guests: 10 Crew: 7

Upgrades & Repairs

• Upgraded fresh water system, with New Headhunter- Aquabox and Mach 5-pumps. Also replaced old DC pump, with new
• Jet-Ski - sent out both units to be completely inspected and repaired, at the Jet Ski Doctor’s recommendations, for service and replacement of engine/unit- parts
• Made new weather covers, for the bow, bow- settee, fly-bridge, boat-deck, and aft-deck
• Replaced bow, fly-bridge, boat-deck, and aft-deck cushions, with new
• Crew Mattresses and Sheet sets- replaced all crew mattresses and sheet sets
• New Furuno System - GPS Gyro
• Windshield Wiper System- replaced
• Repainted boat deck non-skid
• New tender purchase - 16’ Walker Bay w/Honda motor, May 2025
• Installed all-new exhaust system, for main engines and generators, May 2025
• New/Replacement filters for DPF System, are in storage, at Metcalf Marine, FLL
• Installed new auto-shades, in the master stateroom
• Installed all new Entertainment system, on the yacht
• Installed new refrigerator and ice-maker, on the Flybridge
• Installed 2x new sun shade systems, on the fly-bridge
• Installed new sunshade system, on the boat-deck
• Remove and serviced hydraulic system- heat exchangers (3), August 2025
• Removed and rebuilt Naiad Stabilizer- hydraulic rams (4)
• Complete valve-job performed on both MTU- main engines (Mendol), June 2025
• Performed complete injector replacement on MTU- main
• All new sheets and duvet(s) in the guest areas
• Installed new dishwasher, in stew- pantry (galley)
• Replaced P.H. - windscreen, with new
• Props newly checked for balance and “S”- classed
• Shafts pulled and checked for alignment
• New strut-bearings installed
• Port & Starboard - engine & transmissions, strut- tubes, checked with laser alignment
• New Naiad stabilizer fin- shaft bearings, installed
• All new zincs applies to under waterline and running gear
• New Prop-Speed applied to running gear
• Replaced both rudder shaft seals
• Hauled anchor chain. Replaced, chain/anchor- swivels, repainted, end over ended chain, and re-loaded
• Replaced bow-thruster leg, with new
• Performed complete valve adjustment to main engines
• Rebuilt (4)- turbos on main engines
• Removed air-chargers (4) from main engines, bench-tested and cleaned
• Replaced the main fuel transfer - pump
• Performed annual service to davit. Also replaced the davit- lifting line
• Replaced insulation on main chill-water- trunk-line, running through the engine room.
• Perform waxing of entire yacht
• Rebuilt and replaced (2)- water-maker, high pressure pumps
• Added electric- window tinting, to master-stateroom
• Repainted- swim platform edge, from port to starboard, with non-skid
• Replaced teak-decking on entire swim-platform

Construction

• Builder: Westport
• Naval Architect: William Garden
• Interior Design/Stylist: Pacific Custom Interiors
• Hull Material: GRP

Speed & Capacities

• Maximum: 24 Knots
• Cruising: 13 Knots
• Range: 24 knots max. 2,500nm range @13kts/52gph/9,984 gallons
• Fuel: 9898.53 Gal / 37470 L
• Water: 1619.37 Gal / 6130 L
• Grey Water: 940 Gal / 3,560 L
• Black Water: 1,360 Gal / 5,150 L
• Lube Oil Capacity: 77 Gal / 291 L

Machinery

• Engine Type: 2 x MTU 12V 4000
• Horsepower: 2,734 Hp
• Engine Hours: 3,400 hours since W-6 major overhaul
• Engine Serial Numbers: 5262001231 Port, 5262001229 Starboard
• Generators: 2 x Kohler 65EOZD (@1,800 rpm)
• Port Generator Hours: 1,900 hours since overhaul
• Starboard Generator Hours: 1,900 hours since overhaul
• Shore power: ASEA 170‐520V, 3‐Phase, 60Hz
• Batteries: 3 x 12V sets, 6 x 24V sets
• Stabilizer: Naiad 521 with datum control for at‐anchor stabilization
• Stabilizer at Anchor: Yes
• Steering System: Jastram PTO pumps from main engines
• Water Makers: Sea Recovery SRV 1500‐2 AWM
• Bow Thruster: Wesmar Vortex V 2‐16
• Fuel Separator and Filtration: RCI Technologies water separator
• Fresh Water System: Aquabox pump 110V
• Air Conditioning: Dometic 6 ton with 72 BTU

Communication & Navigational Equipment

Pilothouse

• SAT COM: Fleet 33 Inmarsat
• Telephone System: Nortel 4 line
• VHF: Icom IC‐M602
• Navtex: Navtex Furuno NX700

Navigation Systems

• Radar: Furuno 2115B X‐band, Furuno 2115 ARPA X‐band
• Gyrocompass: Sperry Marine Navigat X MK2
• Auto Pilot: Sperry Marine Naviplot 4000+
• Depth Sounder: Furuno RD‐33
• GPS: Furuno GP‐33, Bridge Dash

Entertainment Systems

• VSAT1: Yes
• iPads: Yes

Galley & Laundry Equipment

Main Galley Equipment

• Oven: 2 x Miele ovens
• Microwave: LG microwave
• Refrigerator: Kitchen Aid refrigerator
• Freezer: Kitchen Aid freezer

Crew Galley/Mess

• Fridge: Whirlpool refrigerator, Uline refrigerator
• Microwave: LG Microwave

Laundry

• Washing Machines: 2 x Miele Washing Machines
• Dryers: 2 x Miele clothes dryers

Deck Equipment

• Anchor Windlass: Maxwell VWC 6000
• Aft Warping Capstans:
• Anchors: 2 x Poole 600lb
• Anchor Chain: 2 x 400' 5/8"
• Main Tender Davits: Nautical Structures CC2000 EX156 with 909kg capacity
• Passarelle: Bensenzoni

Security, Fire Fighting & Safety Equipment

• CCTV System: Pelco CCTV
• Cameras: 9 x cameras
• Monitors: 4 x monitors
• Fire Control System: Custom Westport manufactured system
• Fire Extinguishers: 26 x portable fire extinguishers
• Alarms: Yes
• Life Rafts: 2 x Zodiac Solas 25 life rafts
• Life Rings: 4 x Life rings
• EPIRBS: 2 x EPIRBS
• Flares: 3 x Flares
• Medical Equipment: Medical bag
